TOMOGRAPHIC 5M
Multifunctional flaw detector tomograph with built-in support for multidisciplinary scanners — tomographic, optical, railway and others. Designed for NDT laboratories inspecting welded joints, pipe fittings, metal structures and composite materials.
Request Quote
Technical Specifications
| Built-in NDT methods | Ultrasound, EMA, eddy current and others |
| Scan types | A-scan, B-scan, D-scan (TODF) |

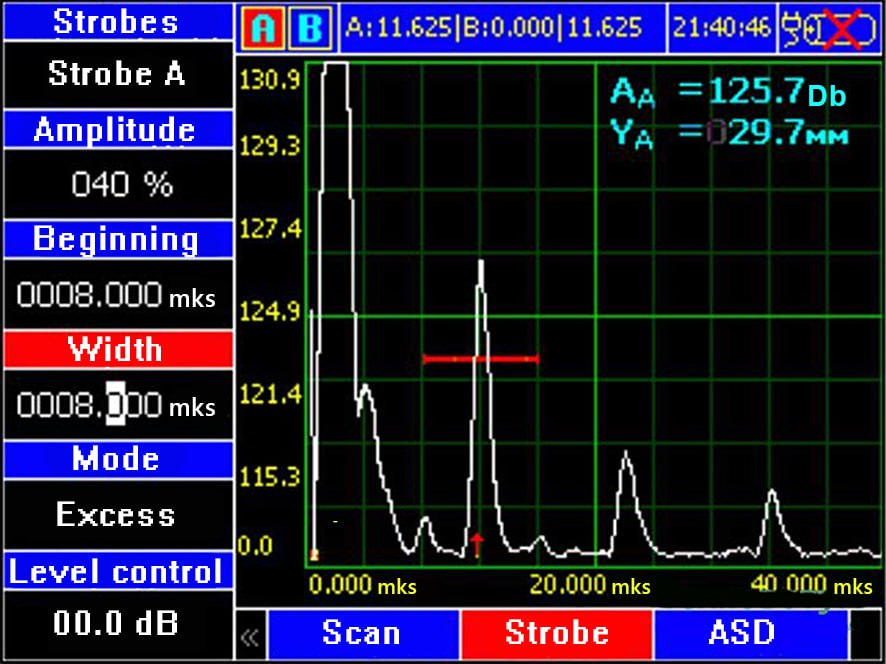

| Strobes | Two independently controlled (A and B) |
| Signal types | Detected and radio |
| Operating modes | Envelope, freezing, beam path display |
| Time-lapse curve | Automatic or manual — up to 256 points |
| Special accessories | Videoscope, tomographic scanner |
Description

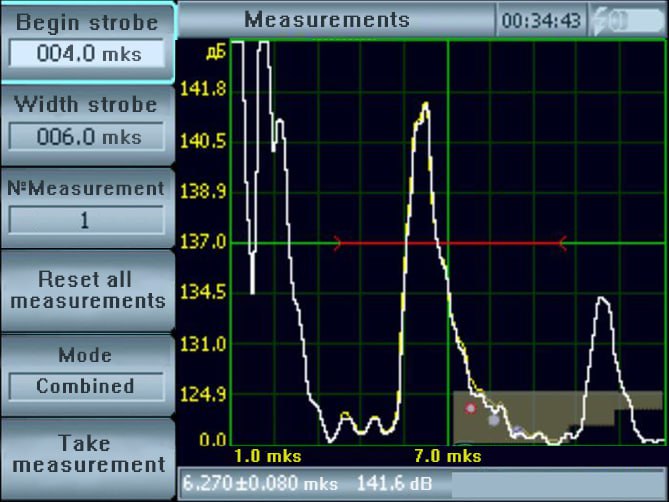

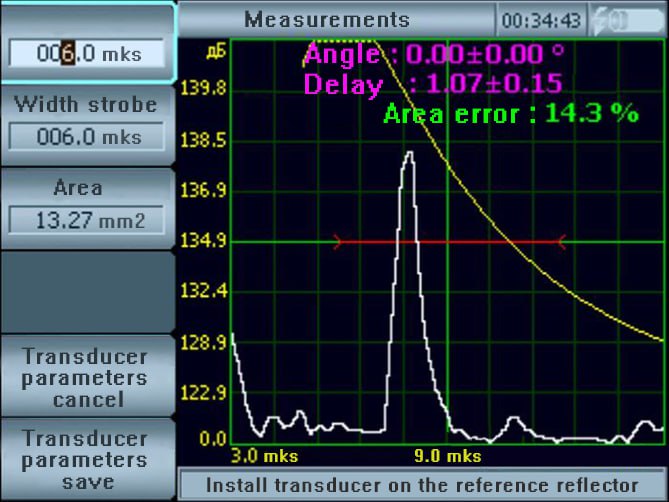

TOMOGRAPHIC 5M is a multifunctional flaw detector tomograph with built-in support for multidisciplinary scanners: tomographic, optical, railway purpose and others. Such functionality is in demand by NDT laboratories for the control of welded joints, fitting pipe, various metal structures and composite materials. The device supports multitask mode — simultaneous launch of several applications — and provides automatic determination of ultrasonic testing speed in various materials and delays in the prism, along with a full database of ultrasound propagation speeds.

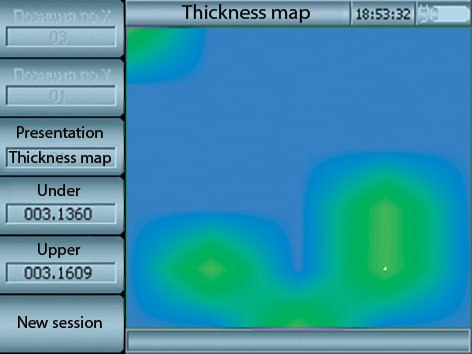

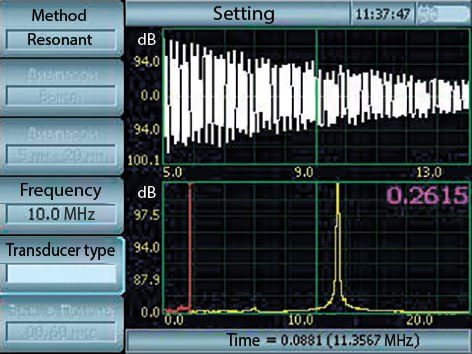

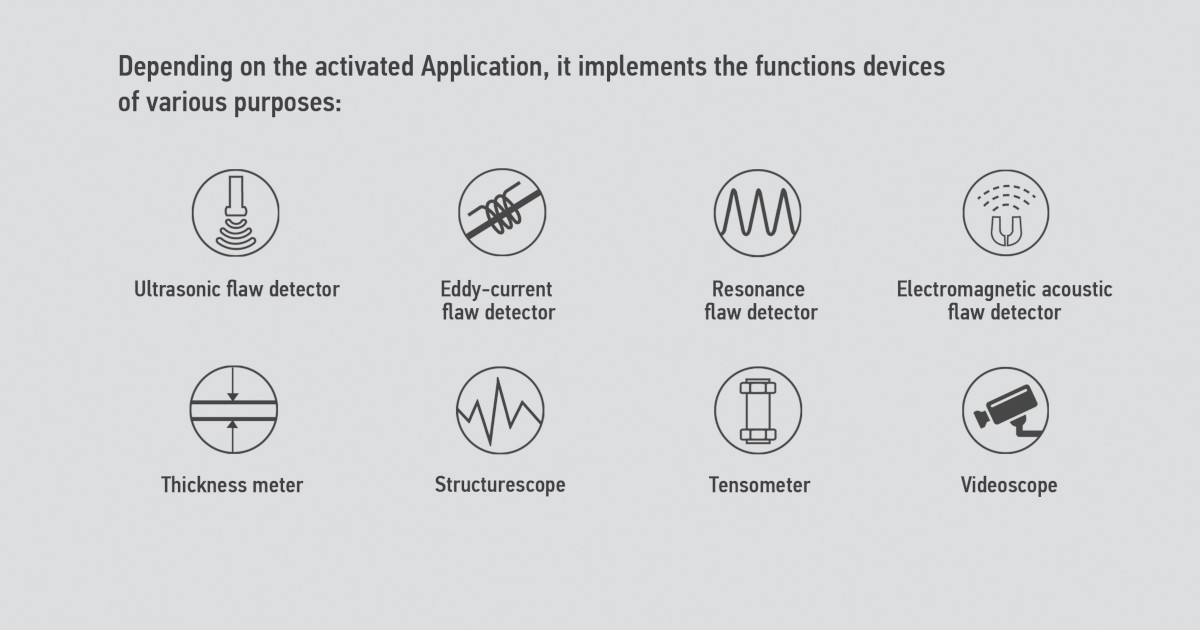

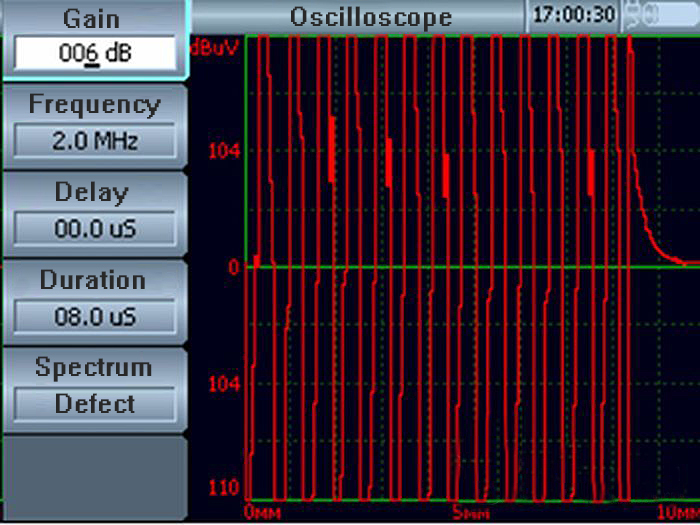

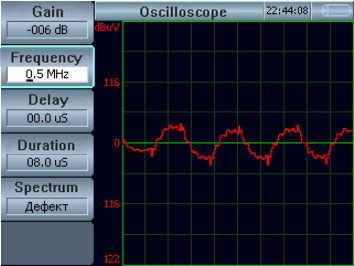

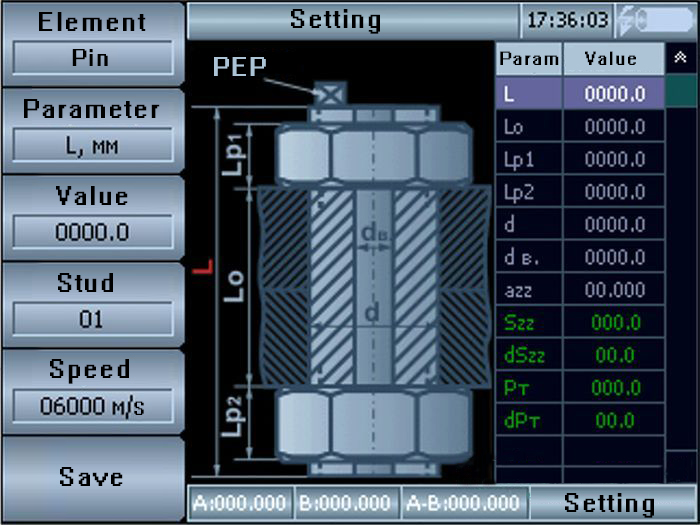

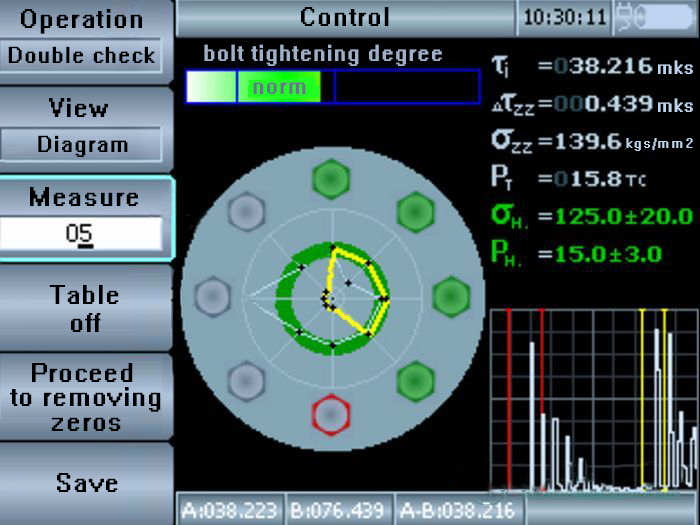

The platform offers a modular application ecosystem: TOMOGRAPHIC 1.1 (general purpose flaw detector), TOMOGRAPHIC 1.2 (EMAT and ultrasound thickness meter), TOMOGRAPHIC 1.3 (probe conditioning / DGS diagrams), TOMOGRAPHIC 4.1 (eddy-current flaw detector), TOMOGRAPHIC 3.2 (acoustic tensometer for bolt tightening force monitoring), and TOMOGRAPHIC 5.1 (built-in flash player for training videos of testing techniques).
Key Features
Gallery
